Stainless Steel Flanges

Industrial stainless flanges organised by standard and pressure system.

Sort By Sort By: Featured
[SS-NB-FLA-65-RF-BLA-300-316] DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 316

DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 152.79
[SS-NB-FLA-65-RF-BLA-150-316] DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 316

DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 138.87
[SS-NB-FLA-50-RF-BLA-300-316] DN50 (2" NB) ASA300 RF BLIND FLANGE SS 316

DN50 (2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 80.88
[SS-NB-FLA-50-RF-BLA-150-316] DN50 (2" NB) ASA150 RF BLIND FLANGE SS 316

DN50 (2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 60.72
[SS-NB-FLA-40-RF-BLA-300-316] DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 316

DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 64.59
[SS-NB-FLA-40-RF-BLA-150-316] DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 316

DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 37.02
[SS-NB-FLA-32-RF-BLA-300-316] DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 316

DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 52.14
[SS-NB-FLA-32-RF-BLA-150-316] DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 316

DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 33.45
[SS-NB-FLA-25-RF-BLA-300-316] DN25 (1" NB) ASA300 RF BLIND FLANGE SS 316

DN25 (1" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 32.88
[SS-NB-FLA-25-RF-BLA-150-316] DN25 (1" NB) ASA150 RF BLIND FLANGE SS 316

DN25 (1" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 21.03
[SS-NB-FLA-20-RF-BLA-300-316] DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 316

DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 31.26
[SS-NB-FLA-20-RF-BLA-150-316] DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 316

DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 16.29
[SS-NB-FLA-15-RF-BLA-300-316] DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 316

DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 316

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 15.87
[SS-NB-FLA-15-RF-BLA-150-316] DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 316

DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 316

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 10.92
[SS-NB-FLA-600-RF-BLA-300-304] DN600 (24" NB) ASA300 RF BLIND FLANGE SS 304

DN600 (24" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-600-RF-BLA-150-304] DN600 (24" NB) ASA150 RF BLIND FLANGE SS 304

DN600 (24" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-500-RF-BLA-300-304] DN500 (20" NB) ASA300 RF BLIND FLANGE SS 304

DN500 (20" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-500-RF-BLA-150-304] DN500 (20" NB) ASA150 RF BLIND FLANGE SS 304

DN500 (20" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-450-RF-BLA-300-304] DN450 (18" NB) ASA300 RF BLIND FLANGE SS 304

DN450 (18" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-450-RF-BLA-150-304] DN450 (18" NB) ASA150 RF BLIND FLANGE SS 304

DN450 (18" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-400-RF-BLA-300-304] DN400 (16" NB) ASA300 RF BLIND FLANGE SS 304

DN400 (16" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-400-RF-BLA-150-304] DN400 (16" NB) ASA150 RF BLIND FLANGE SS 304

DN400 (16" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-350-RF-BLA-300-304] DN350 (14" NB) ASA300 RF BLIND FLANGE SS 304

DN350 (14" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-350-RF-BLA-150-304] DN350 (14" NB) ASA150 RF BLIND FLANGE SS 304

DN350 (14" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-300-RF-BLA-300-304] DN300 (12" NB) ASA300 RF BLIND FLANGE SS 304

DN300 (12" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-300-RF-BLA-150-304] DN300 (12" NB) ASA150 RF BLIND FLANGE SS 304

DN300 (12" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-250-RF-BLA-300-304] DN250 (10" NB) ASA300 RF BLIND FLANGE SS 304

DN250 (10" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-250-RF-BLA-150-304] DN250 (10" NB) ASA150 RF BLIND FLANGE SS 304

DN250 (10" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-200-RF-BLA-300-304] DN200 (8" NB) ASA300 RF BLIND FLANGE SS 304

DN200 (8" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-200-RF-BLA-150-304] DN200 (8" NB) ASA150 RF BLIND FLANGE SS 304

DN200 (8" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-150-RF-BLA-300-304] DN150 (6" NB) ASA300 RF BLIND FLANGE SS 304

DN150 (6" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-150-RF-BLA-150-304] DN150 (6" NB) ASA150 RF BLIND FLANGE SS 304

DN150 (6" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 166.98
[SS-NB-FLA-125-RF-BLA-300-304] DN125 (5" NB) ASA300 RF BLIND FLANGE SS 304

DN125 (5" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-125-RF-BLA-150-304] DN125 (5" NB) ASA150 RF BLIND FLANGE SS 304

DN125 (5" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-100-RF-BLA-300-304] DN100 (4" NB) ASA300 RF BLIND FLANGE SS 304

DN100 (4" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-100-RF-BLA-150-304] DN100 (4" NB) ASA150 RF BLIND FLANGE SS 304

DN100 (4" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-80-RF-BLA-300-304] DN80 (3" NB) ASA300 RF BLIND FLANGE SS 304

DN80 (3" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-80-RF-BLA-150-304] DN80 (3" NB) ASA150 RF BLIND FLANGE SS 304

DN80 (3" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 80.67
[SS-NB-FLA-65-RF-BLA-300-304] DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 304

DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-65-RF-BLA-150-304] DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 304

DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-50-RF-BLA-300-304] DN50 (2" NB) ASA300 RF BLIND FLANGE SS 304

DN50 (2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-50-RF-BLA-150-304] DN50 (2" NB) ASA150 RF BLIND FLANGE SS 304

DN50 (2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 34.95
[SS-NB-FLA-40-RF-BLA-300-304] DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 304

DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-40-RF-BLA-150-304] DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 304

DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 28.35
[SS-NB-FLA-32-RF-BLA-300-304] DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 304

DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-32-RF-BLA-150-304] DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 304

DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-25-RF-BLA-300-304] DN25 (1" NB) ASA300 RF BLIND FLANGE SS 304

DN25 (1" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-25-RF-BLA-150-304] DN25 (1" NB) ASA150 RF BLIND FLANGE SS 304

DN25 (1" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-20-RF-BLA-300-304] DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 304

DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-20-RF-BLA-150-304] DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 304

DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-15-RF-BLA-300-304] DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 304

DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 304

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-15-RF-BLA-150-304] DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 304

DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 304

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-RF-SO-A150-65-FUL-304] DN65 (2.1/2" NB) ASA150 RF SLIP ON FLANGE SS 304

DN65 (2.1/2" NB) ASA150 RF SLIP ON FLANGE SS 304

Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit 5/8"⌀ or M16 Bolts
PCD: 139.7mm
Flange Diameter: 177.8mm
Flange Thickness: 22.3mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)
£ 44.82
[SS-NB-FLA-1200-FF-BLA-P6-316] DN1200 (48" NB) PN6 FF BLIND FLANGE SS 316

DN1200 (48" NB) PN6 FF BLIND FLANGE SS 316

Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 3.1 BS EN 10204 Material Certification


Part of our Flanges and Flanged Connections Range
(0)
£ 21,824.40
[SS-NB-FLA-FF-SO-P16-304-D-304L] DN300 (12" NB) PN16 (D THK) FF SLIP ON FLANGE BORED 305mm SS 304/L

DN300 (12" NB) PN16 (D THK) FF SLIP ON FLANGE BORED 305mm SS 304/L

Suits an outside diameter (OD) of: 304mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 12 off to suit M24 Bolts
PCD: 410mm
Flange Diameter: 460mm
Flange Thickness: 20mm (Table D)
Inside diameter to suit 304mm Metric / Hygienic / Dairy (No Chamfer)

Alternative terminology:
FF, SO, Flat Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.

Part of our Flanges and Flanged Connections Range
(0)
£ 358.80
[SS-NB-FLA-BSPT-150-15-316] DN15 (1/2" NB) BSPT ANSI 150LB BOSSED THREADED FLANGE SS 316

DN15 (1/2" NB) BSPT ANSI 150LB BOSSED THREADED FLANGE SS 316

Suits an outside diameter (OD) of: 21.3mm
Thread Type: BSP Taper
Material: Stainless
Grade: 316
Standards: ANSI 150
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 60.4mm
Flange Diameter: 88.9mm
Flange Thickness: 11.1mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded, Screwed Flange, Tapped, BSPT Taper, Stainless steel

Part of our Flanges and Flanged Connections Range
(0)
£ 10.35
[SS-NB-FLA-80-RF-WN-S10-P16-316] DN80 (3" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316

DN80 (3" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
(0)
£ 108.63
[SS-NB-FLA-50-RF-SCR-BSPT-P16-SS-316] DN50 (2" NB) PN16 RF BSPT THREADED FLANGE SS 316

DN50 (2" NB) PN16 RF BSPT THREADED FLANGE SS 316

Flange outside diameter: 165mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 125mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPT Thread: 2"
Bolt Holes: 4 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-RF-SO-P16/40-25-FUL-304] DN25 (1"NB) PN10/16/25/40 RF SLIP ON PLATE FLANGE SS 304/L

DN25 (1"NB) PN10/16/25/40 RF SLIP ON PLATE FLANGE SS 304/L

Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 16mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)
£ 15.60
[SS-NB-FLA-RF-WN-P16-50-S80-316] DN50 (2" NB) PN16 SCHEDULE 80s RF WELD NECK FLANGE SS 316

DN50 (2" NB) PN16 SCHEDULE 80s RF WELD NECK FLANGE SS 316

Suits an outside diameter (OD) of: 60.3mm
Suits Wall Thickness (WT): Schedule 80s
Material: Stainless
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125mm
Flange Diameter: 165mm
Flange Thickness: 20.0mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-25-RF-NPT-ASA150-316] DN25 (1" NB) ASA150 RF BOSSED NPT THREADED FLANGE SS 316

DN25 (1" NB) ASA150 RF BOSSED NPT THREADED FLANGE SS 316

Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore: Threaded 1" NPT
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
(0)
£ 18.57
[SS-NB-FLA-FF-BLA-TD-100-FUL-316] DN100 (4" NB) TABLE D FF BLIND FLANGE SS 316/L

DN100 (4" NB) TABLE D FF BLIND FLANGE SS 316/L

Suits an outside diameter (OD) of: 114.3mm
Material: Stainless Steel
Grade: 316
Standards: BS10 Table D
Flange Face: Flat
Bolt Holes: 4 off to suit M16 Bolts
PCD: 177.8mm
Flange Diameter: 215.9mm
Flange Thickness: 9.53mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Blank, Termination, Blind Flange, FFB, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 55.02
[SS-NB-FLA-FF-BLA-TD-150-FUL-316] DN150 (6" NB) TABLE D FF BLIND FLANGE SS 316/L

DN150 (6" NB) TABLE D FF BLIND FLANGE SS 316/L

Suits an outside diameter (OD) of: 168.1mm
Material: Stainless Steel
Grade: 316
Standards: BS10 Table D
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 235mm
Flange Diameter: 279.4mm
Flange Thickness: 12.7mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Blank, Termination, Blind Flange, FFB, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 131.46
[SS-NB-FLA-150-FF-SO-BS-D-316] DN150 (6" NB) BS10 TABLE D FF SLIP ON PLATE FLANGE SS 316

DN150 (6" NB) BS10 TABLE D FF SLIP ON PLATE FLANGE SS 316

Suits an outside diameter (OD) of: 168.1mm
Material: Stainless Steel
Grade: 316
Standards: BS10 Table D
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 235mm
Flange Diameter: 279.4mm
Flange Thickness: 12.7mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, FFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 82.89
[SS-NB-FLA-BSPT-150-20-316] DN20 (3/4" NB) BSPT ANSI 150LB BOSSED THREADED FLANGE SS 316

DN20 (3/4" NB) BSPT ANSI 150LB BOSSED THREADED FLANGE SS 316

Suits an outside diameter (OD) of: 26.9mm
Thread Type: BSP Taper
Material: Stainless
Grade: 316
Standards: ANSI 150
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 69.8mm
Flange Diameter: 98.5mm
Flange Thickness: 12.7mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded, Screwed Flange, Tapped, BSPT Taper, Stainless steel

Part of our Flanges and Flanged Connections Range
(0)
£ 13.50
[SS-NB-FLA-50-RF-WN-S10-P16-316] DN50 (2" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316

DN50 (2" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316

Outside diameter (O): 165.0mm
Flange thickness (C): 18.0mm
Hub length (X): 77.7mm
Pitch circle diameter (K): 125.0mm
Hub base diameter (Y): 74mm
Raised face height (RF): 3mm
Raised face diameter (R): 102mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: PN16
Type: Weld Neck Flange (EN10921)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
(0)
£ 58.44
[SS-NB-FLA-RF-SO-P16-65-FUL-304-4H] DN65 (2.1/2" NB) PN16 (4 HOLE) RF SLIP ON PLATE FLANGE SS 304

DN65 (2.1/2" NB) PN16 (4 HOLE) RF SLIP ON PLATE FLANGE SS 304

Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 122mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)

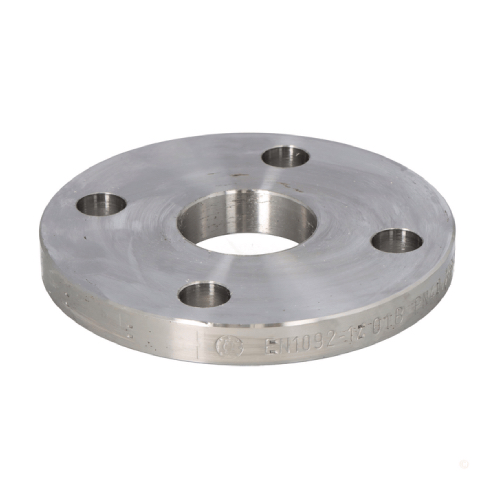

[SS-NB-FLA-50-FF-5K-316-EU] DN50 (2" NB) JIS 5K FF SLIP ON FLANGE FLANGE 316/L (EUROPEAN ORIGIN)

DN50 (2" NB) JIS 5K FF SLIP ON FLANGE FLANGE 316/L (EUROPEAN ORIGIN)

Suits an outside diameter (OD) of: 60.3mm
Material: Stainless Steel
Grade: 316/L
Standards: JIS B2220 5K
Flange Face: Flat
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)

Alternative terminology:
Slip on, Raised Face, FFSO, Weld on, Stainless Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 312.00
[SS-NB-FLA-150-RF-SO-TH-304] DN150 (6" NB) TABLE H SLIP ON PLATE FLANGE SS 304

DN150 (6" NB) TABLE H SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 168.5MM
Flange overall diameter: 304.8mm
PCD: 260.3
Bolt Holes: 12 off 22mm diameter
Flange Thickness: 28.6mm
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-150-RF-SO-TF-304] DN150 (6" NB) TABLE F SLIP ON PLATE FLANGE SS 304

DN150 (6" NB) TABLE F SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 168.5MM
Flange overall diameter: 304.8mm
PCD: 260.4
Bolt Holes: 12 off 22mm diameter
Flange Thickness: 22.2mm
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-15-RF-SCR-BSPT-ASA150-316] DN15 (1/2" NB) ASA150 1/2" BSPT THREADED FLANGE SS 316/L

DN15 (1/2" NB) ASA150 1/2" BSPT THREADED FLANGE SS 316/L

Outside diameter (O): 88.9mm
PCD: 60.3
Number of bolt holes: 4 X M12
Material: STAINLESS 316
Rating: ASA 150
Threaded: BSPT
Type: Screwed

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
(0)
£ 9.27
[SS-NB-FLA-80-FF-SO-BS-E-316] DN80 (3" NB) BS10 TABLE E FF SLIP ON PLATE FLANGE SS 316

DN80 (3" NB) BS10 TABLE E FF SLIP ON PLATE FLANGE SS 316

Suits an outside diameter (OD) of: 88.9mm
Material: Stainless Steel
Grade: 316
Standards: BS10 Table E
Flange Face: Flat
Bolt Holes: 4 off to suit M16 Bolts
PCD: 146.05mm
Flange Diameter: 184.15mm
Flange Thickness: 11.11mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, FFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
(0)
[SS-NB-FLA-65-RF-WN-S10-P16-316] DN65 (2.1/2" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316

DN65 (2.1/2" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316

Outside diameter (O): 185mm
Flange thickness (C): 18mm
Neck height (A): 45mm
Pitch circle diameter (K): 145mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: PN16
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
(0)
£ 68.34
[SS-NB-FLA-40-RF-SO-150-304] DN40 (1.1/2" NB) ASA 150# RF SLIP ON PLATE FLANGE SS 304

DN40 (1.1/2" NB) ASA 150# RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 127mm (D)
PCD: 98.4mm (K)
Bolt Holes: 4 off 12mm diameter (L)
Flange Thickness: 17.5mm (C1)
Diameter of Raised Face (RF): 65.1mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
(0)
£ 19.50
[SS-NB-FLA-RF-SO-P16-50-FUL-SMO-254] DN50 (2" NB) PN10/PN16 RF SLIP ON PLATE FLANGE SS SMO 254

DN50 (2" NB) PN10/PN16 RF SLIP ON PLATE FLANGE SS SMO 254

Suits an outside diameter (OD) of: 60.3mm
Material: Stainless
Grade: SMO 254
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125mm
Flange Diameter: 165mm
Flange Thickness: 18mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)
£ 870.48
[SS-NB-FLA-32-RF-WN-S10-P16-304] DN32 (1.1/4" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 304

DN32 (1.1/4" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 304

Outside diameter (O): 140mm
Flange thickness (C): 16mm
Neck height (A): 40mm
Pitch circle diameter (K): 100mm
Raised face height (RF): 16mm
Number of bolt holes: 4
Material: 304 Stainless Steel
Rating: PN16
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
(0)
£ 27.00
[SS-NB-FLA-100-RF-WN-S10-P16-304] DN100 (4" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 304

DN100 (4" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 304

Outside diameter (O): 220mm
Flange thickness (C): 20mm
Pitch circle diameter (K): 180mm
Hub base diameter (Y): 76.2mm
Number of bolt holes: 8
Material: 304 Stainless Steel
Rating: PN16
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
(0)
£ 191.22
[SS-NB-FLA-BLA-100-FF-16K-316] DN100 (4" NB) JIS 16K FF BLIND FLANGE FLANGE 316/L

DN100 (4" NB) JIS 16K FF BLIND FLANGE FLANGE 316/L

Suits an outside diameter (OD) of: 114.3mm
Material: Stainless Steel
Grade: 316/L
Standards: JIS B2220 16K
Flange Face: Flat
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind / Blanking Flange, Flat Face, FFB, Stainless Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 296.40
[SS-NB-FLA-BLA-65-FF-16K-316] DN65 (2.1/2 NB) JIS 16K FF BLIND FLANGE FLANGE 316/L

DN65 (2.1/2 NB) JIS 16K FF BLIND FLANGE FLANGE 316/L

Suits an outside diameter (OD) of: 73mm
Material: Stainless Steel
Grade: 316/L
Standards: JIS B2220 16K
Flange Face: Flat
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind / Blanking Flange, Flat Face, FFB, Stainless Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 212.16
[SS-NB-FLA-SO-100-FF-16K-316] DN100 (4" NB) JIS 16K FF SLIP ON FLANGE FLANGE 316/L

DN100 (4" NB) JIS 16K FF SLIP ON FLANGE FLANGE 316/L

Suits an outside diameter (OD) of: 114.3mm
Material: Stainless Steel
Grade: 316/L
Standards: JIS B2220 16K
Flange Face: Flat
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Raised Face, FFSO, Weld on, Stainless Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 296.40
[SS-NB-FLA-SO-65-FF-16K-316] DN65 (2.1/2" NB) JIS 16K FF SLIP ON FLANGE FLANGE 316/L

DN65 (2.1/2" NB) JIS 16K FF SLIP ON FLANGE FLANGE 316/L

Suits an outside diameter (OD) of: 73mm
Material: Stainless Steel
Grade: 316/L
Standards: JIS B2220 16K
Flange Face: Flat
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Raised Face, FFSO, Weld on, Stainless Steel

Part of our Flanges and Flanged Connections Range
(0)
£ 212.16
[SS-NB-FLA-700-RF-BLA-P16-316] DN700 (28" NB) PN16 RF BLIND FLANGE SS 316/L

DN700 (28" NB) PN16 RF BLIND FLANGE SS 316/L

Flange OD (D): 910mm
Drilling (No. x Bolt Hole x L): 24 x M33 x 36mm
Pitch circle diameter (K): 840mm
Flange thickness (C1): 58mm
Material: 316/L
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
(0)
£ 4,212.00
[SS-NB-FLA-700-RF-WN-S10-P16-316] DN700 (28" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316/L

DN700 (28" NB) SCHEDULE 10S PN16 WELD NECK FLANGE SS 316/L

Flange OD (D): 910mm
Drilling (No. x Bolt Hole x L): 24 x M33 x 36mm
Pitch circle diameter (K): 840mm
Flange thickness (C1): 58mm
Neck Thickness: Schedule 10s
Material: 316/L
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
(0)
£ 2,964.00
[SS-NB-FLA-RF-WN-P16-50-S10-304] DN50 (2" NB) PN16 SCHEDULE 10s RF WELD NECK FLANGE SS 304/L

DN50 (2" NB) PN16 SCHEDULE 10s RF WELD NECK FLANGE SS 304/L

Suits an outside diameter (OD) of: 60.3mm
Suits Wall Thickness (WT): Schedule 10s
Material: Stainless
Grade: 304/L
Standards: EN1092-1 PN16/2
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125.00mm
Flange Diameter: 185mm
Flange Thickness: 18.0mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)
£ 40.83
[SS-NB-FLA-RF-WN-P16-40-S10-304] DN50 (1.1/2" NB) PN16 SCHEDULE 10s RF WELD NECK FLANGE SS 304/L

DN50 (1.1/2" NB) PN16 SCHEDULE 10s RF WELD NECK FLANGE SS 304/L

Suits an outside diameter (OD) of: 48.3mm
Suits Wall Thickness (WT): Schedule 10s
Material: Stainless
Grade: 304/L
Standards: EN1092-1 PN16/2
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 110.00mm
Flange Diameter: 150mm
Flange Thickness: 16.0mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
(0)
£ 37.89
