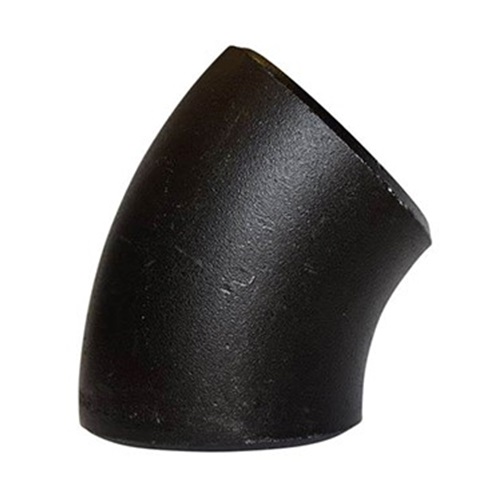

DN90 (3.1/2" NB) SCHEDULE 40/STD A234 WPB LONG RADIUS ELBOW 45°
Outside Diameter (OD): 101.6mm
Wall Thickness (WT): 5.74mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9
Radius Centre to Face: 57.2mm
Angle: 45 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification
Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)
Alternative terminology:
Weld Bends, Weld Elbow, 45° / 45 deg
Internal Reference:
CS-NB-ELB-90-45-STD
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 3.1/2" |
| Outside Diameter (mm) | 101.6mm |
| Wall Thickness | 5.74mm |
| Material | Carbon Steel |
| Connection A | Butt weld |
| Connection B | Butt weld |
| Pressure Class | Schedule 40 |
| Construction | Seamless |
| Finish | Varnished |
| Product Type | Elbow 90° |
| Tags | |
|---|---|
| Tags | |
