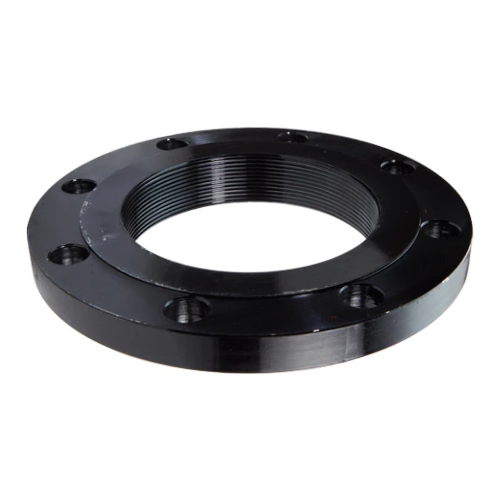

DN100 (4" NB) ASA300 4" NPT THREADED FLANGE CS A105N
Outside diameter (O): 254.0mm
Hub diameter at base (C): 31.7mm
Length through hub (X): 146.0mm
Pitch circle diameter (K): 200.1mm
Raised face diameter (Y): 47.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 157.2mm
Bore diameter (Q): 117.6mm
Hub thickness (T): 36.5mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-100-FF-SCR-300-A105N
