Product Information
%20ASA150%20RF%20BLIND%20FLANGE%20CS%20A105N?unique=4e89d3d)

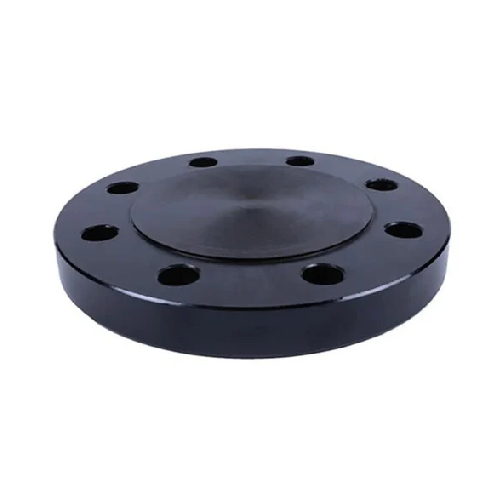

DN100 (4" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-100-RF-BLA-150-A105N
