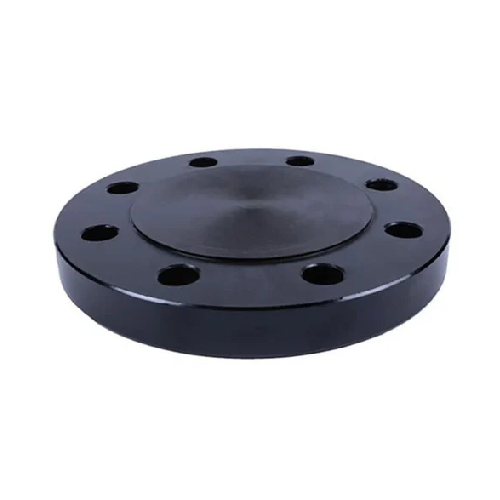

DN100 (4" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 273.0mm
Flange thickness (C): 38.1mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-100-RF-BLA-600-A105N
