  3. DN125 (5" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED
List 600

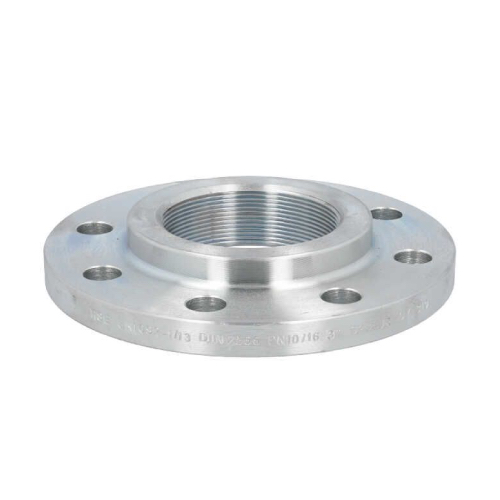

DN125 (5" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

DN125 (5" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

https://www.integraflow.co.uk/web/image/product.template/15194/image_1920?unique=4e89d3d

Flange outside diameter: 240mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 200mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

£ 1.00 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us

    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: CS-NB-FLA-125-RF-SCR-PN6-S235JR-GAL
