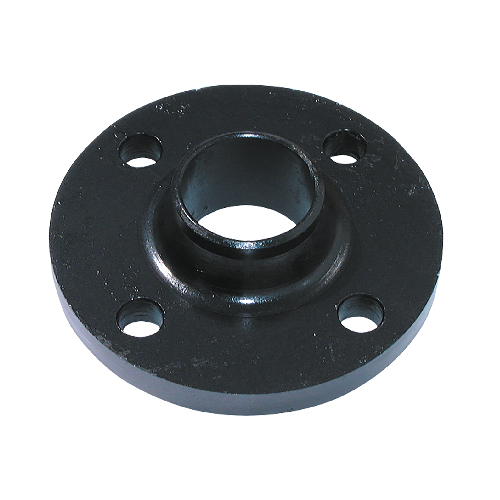

DN15 (1/2" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

DN15 (1/2" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

https://www.integraflow.co.uk/web/image/product.template/15761/image_1920?unique=4e89d3d
Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

£ 0.00 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us

    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: CS-NB-FLA-15-RF-WN-STD-S40-A150-A105N
