  2. EN1092-1
  3. DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE CS S235 JR
List 600

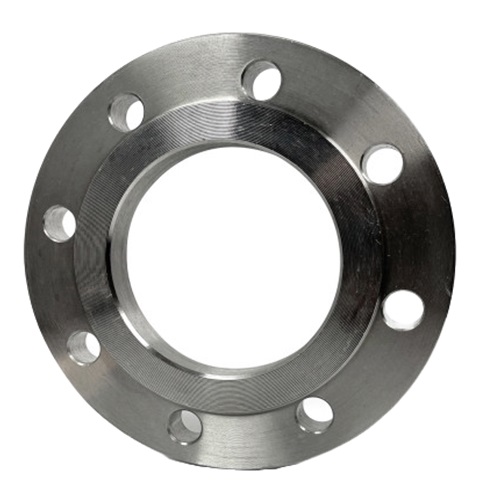

DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE CS S235 JR

DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE CS S235 JR

https://www.integraflow.co.uk/web/image/product.template/11315/image_1920?unique=1e99aaf
(0 review)

Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M24 Bolts
PCD: 250mm
Flange Diameter: 300mm
Flange Thickness: 30mm
Certification Available: 2.1 BS EN 10204 Material Certification

£ 105.70 105.7 GBP £ 105.70 Tax Excluded

£ 23.40 Tax Excluded

Contact us for pricing

  • Pipework Standard
  • Size (Inch)
  • Outside Diameter (mm)
  • Connection A
  • Connection B
  • Material
  • Product Type
  • Pressure Class
  • Flange Standard
  • Pressure Class
  • Pressure Class

This combination does not exist.

​

Contact Us
Flanges



Terms and Conditions
Shipping: Generally 2-3 Business Days
Please contact us for accurate lead times.

Share

Trustpilot

Internal Reference: CS-NB-FLA-150-168-RF-SO-P25/40-S235JR

Specifications

Pipework Standard Nominal Bore
Size (Inch) 6"
Outside Diameter (mm) 168.3mm
Connection A Flanged
Connection B Weld On
Material Carbon Steel
Product Type Slip on Flange
Pressure Class PN25, PN40, PN40
Flange Standard PN25
Tags
Tags
Flanges
