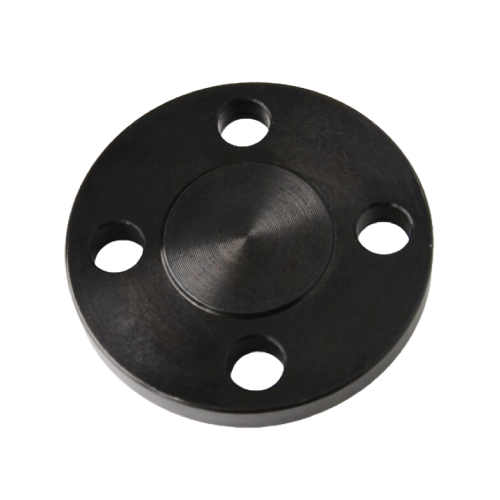

DN20 (3/4" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-20-RF-BLA-150-A105N
