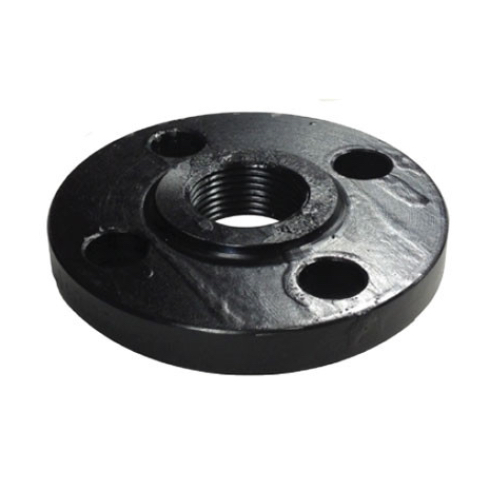

DN25 (1" NB) ASA150 1" NPT THREADED FLANGE CS A105N
Outside diameter (O): 107.9mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 49.2mm
Pitch circle diameter (K): 79.2mm
Raised face diameter (Y): 17.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-25-RF-SCR-NPT-150-A105N
