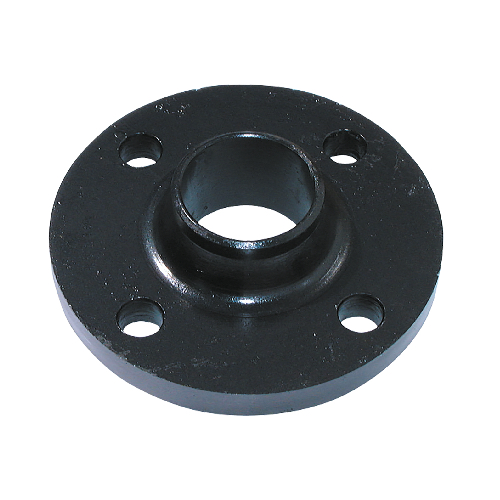

DN25 (1" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

DN25 (1" NB) SCHEDULE 40 / STD WT PN40 WELD NECK FLANGE CS A105N

https://www.integraflow.co.uk/web/image/product.template/22565/image_1920?unique=00dbb1e
(0 review)
Outside diameter (O): 115.00mm
Flange thickness (C): 18mm
Pitch circle diameter (K): 85.00mm
Hub base diameter (Y): 46.00mm
Raised face height (RF): 3.0mm
Raised face diameter (R): 68.00mm
Number of bolt holes: 4
Material: A105N
Rating: PN40
Type: Weld Neck Flange (Type 11)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, PN40, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

£ 11.58 11.58 GBP £ 11.58 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us



    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: CS-NB-FLA-25-RF-WN-STD-S40-P40-A105N
