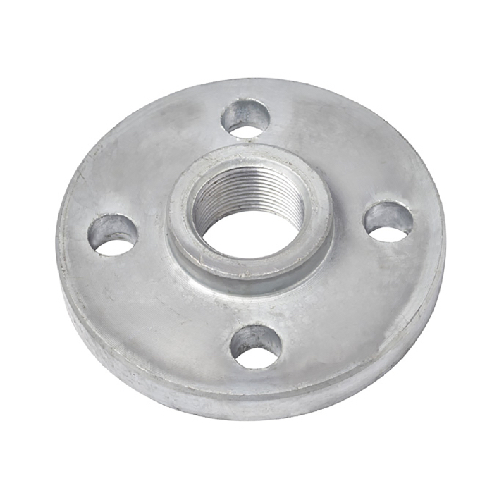

DN32 (1.1/4" NB) ASA300 1.1/4" NPT GALVANISED THREADED FLANGE CS A105N
Outside diameter (O): 133.3mm
Hub diameter at base (C): 19.0mm
Length through hub (X): 63.5mm
Pitch circle diameter (K): 98.5mm
Raised face diameter (Y): 26.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 63.5mm
Bore diameter (Q): 44.4mm
Hub thickness (T): 20.5mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-32-FF-SCR-300-A105N-GAL
