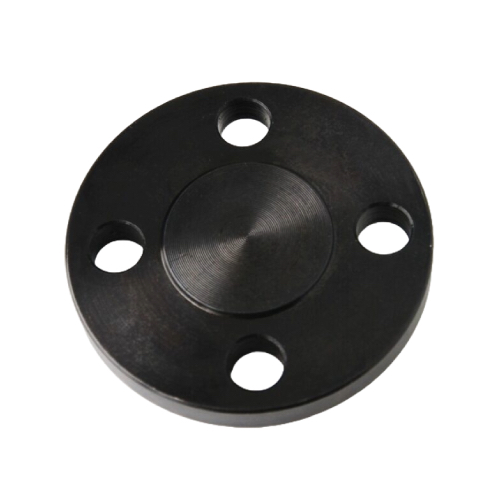

DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-32-RF-BLA-300-A105N
