  3. DN32 (1 1/4" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED
List 600

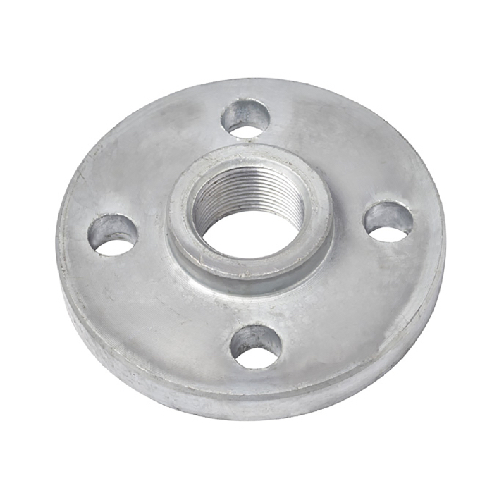

DN32 (1 1/4" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

DN32 (1 1/4" NB) PN6 RF BSPP THREADED FLANGE S235JR GALVANISED

https://www.integraflow.co.uk/web/image/product.template/15182/image_1920?unique=4e89d3d

Flange outside diameter: 120mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 90mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1 1/4"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

£ 1.00 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us

    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: CS-NB-FLA-32-RF-SCR-PN6-S235JR-GAL
