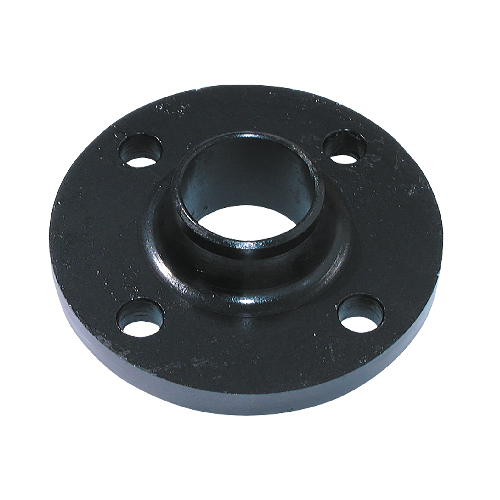

DN32 (1"1/4 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
Internal Reference:
CS-NB-FLA-32-RF-WN-S80-300-A105N
