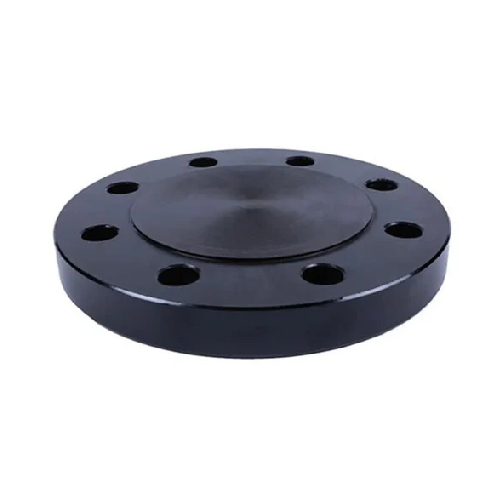

DN50 (2" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 215.9mm
Flange thickness (C): 38.1mm
Pitch circle diameter (K): 165.1mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-50-RF-BLA-1500-A105N
