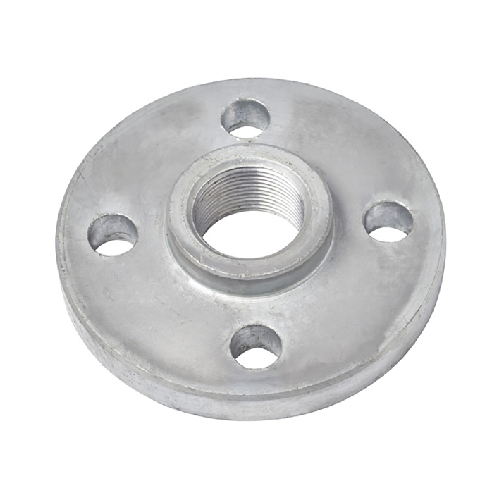

DN50 (2" NB) PN16 RF BSPP THREADED FLANGE S235JR GALVANISED

DN50 (2" NB) PN16 RF BSPP THREADED FLANGE S235JR GALVANISED

https://www.integraflow.co.uk/web/image/product.template/15210/image_1920?unique=4e89d3d

Flange outside diameter: 165mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 125mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

£ 1.00 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us

    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: CS-NB-FLA-50-RF-SCR-P16-S235JR-GAL
