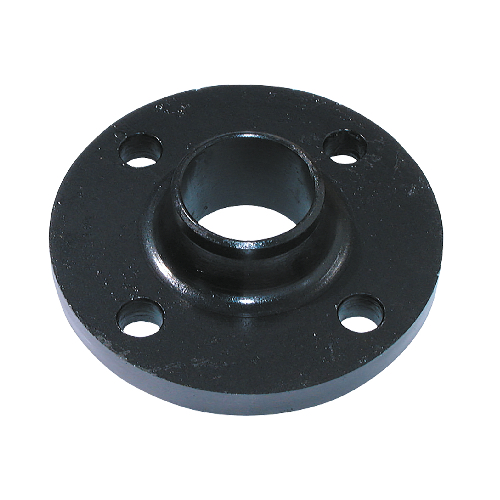

DN50 (2" NB) SCH40/STD ASA150 RF WELD NECK FLANGE CS A105N (EUROPEAN ORIGIN)

DN50 (2" NB) SCH40/STD ASA150 RF WELD NECK FLANGE CS A105N (EUROPEAN ORIGIN)

https://www.integraflow.co.uk/web/image/product.template/11310/image_1920?unique=4e89d3d

Suits an outside diameter (OD) of: 60.3mm
Material: CS
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off 19mm Ø
PCD: 120.6mm
Flange Diameter: 152.4mm
Flange Thickness: 19.0mm
Certification Available: 3.1 Material Certification
Origin: European (EU)

Alternative terminology:
Raised Face, Weld Neck, Weld on, Mild Steel, Carbon Steel

£ 91.42 91.42 GBP £ 91.42 Tax Excluded

£ 23.40 Tax Excluded

Contact us for pricing

  • Pipework Standard
  • Size (Inch)
  • Outside Diameter (mm)
  • Connection A
  • Connection B
  • Connection A
  • Connection B
  • Material
  • Product Type
  • Pressure Class
  • Flange Standard
  • Pressure Class
  • Pressure Class

This combination does not exist.

​

Contact Us
Flanges

Terms and Conditions
Shipping: Generally 2-3 Business Days
Please contact us for accurate lead times.

Share

Trustpilot

Internal Reference: CS-NB-FLA-50-RF-WN-STD-S40-A150-A105N-EU

Specifications

Pipework Standard Nominal Bore
Size (Inch) 2"
Outside Diameter (mm) 60.30mm
Connection A Flanged, Butt weld
Connection B Butt weld, Flanged
Material Carbon Steel
Product Type Weld Neck Flange
Pressure Class 150 psi, Standard Weight, Schedule 40
Flange Standard ANSI 150
