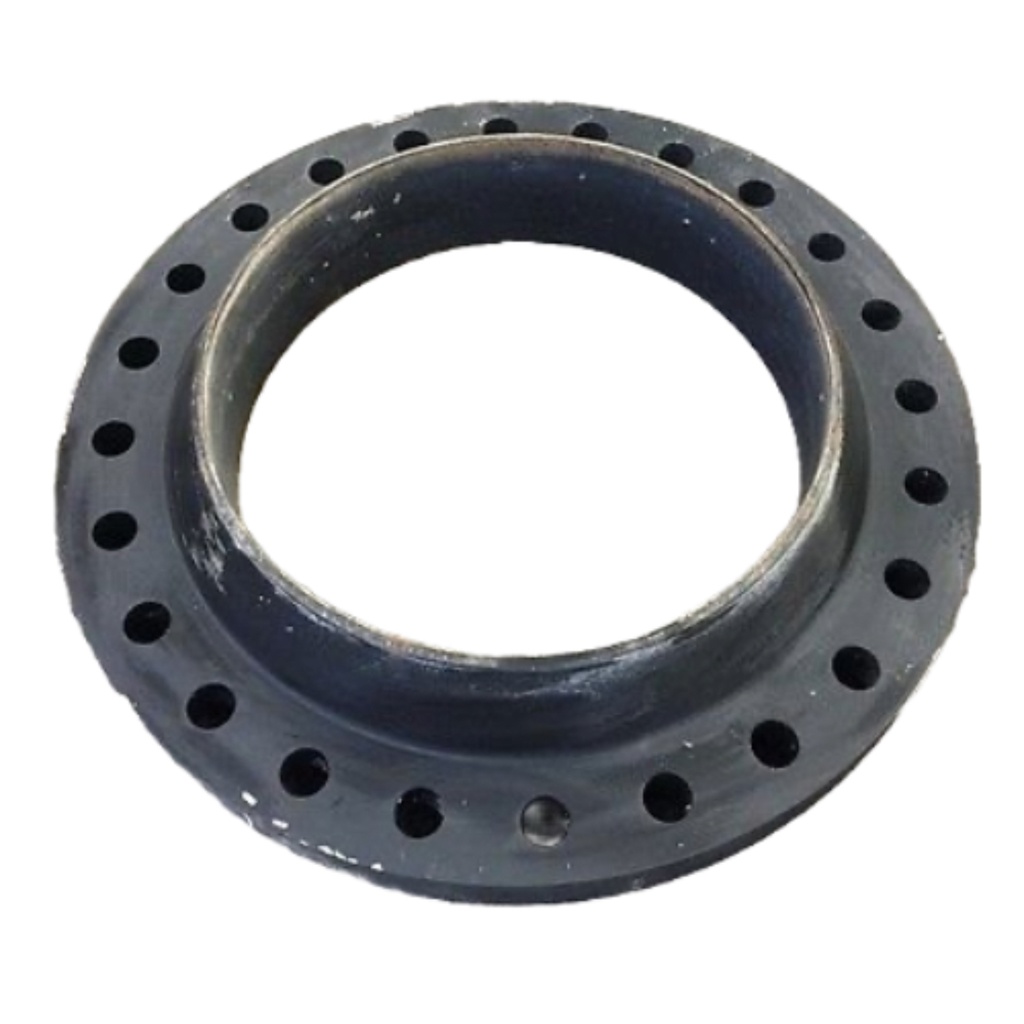

DN600 (24" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Hub length (X): 663.4mm
Neck height (A): 609.6mm
Pitch circle diameter (K): 749.3mm
Hub base diameter (Y): 152.4mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Internal Reference:
CS-NB-FLA-600-RF-WN-S20-A150-A105N
