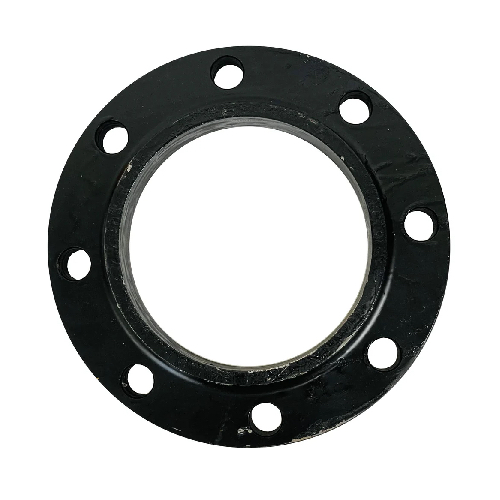

DN65 (2.1/2" NB) ASA300 RF BOSSED SLIP ON FLANGE CS A105N

DN65 (2.1/2" NB) ASA300 RF BOSSED SLIP ON FLANGE CS A105N

https://www.integraflow.co.uk/web/image/product.template/15122/image_1920?unique=4e89d3d

Flange outside diameter: 190.5mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 38.1mm (Y)
Pitch Circle Diameter (PCD): 149.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 74.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

£ 1.00 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us

    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: CS-NB-FLA-65-RF-SOB-ASA300-A105N
