  3. DN80 (3" NB) CL300 RF BSPT THREADED FLANGE CS A105N
List 200

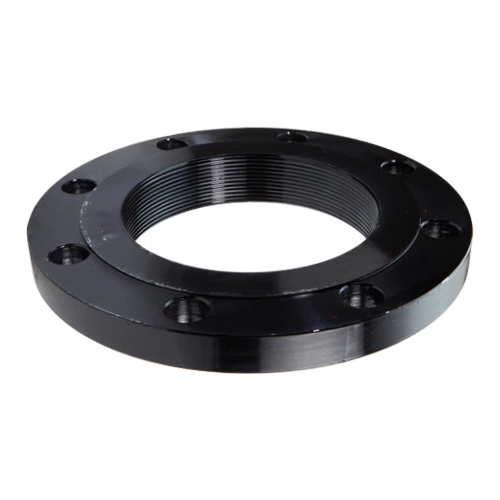

DN80 (3" NB) CL300 RF BSPT THREADED FLANGE CS A105N

DN80 (3" NB) CL300 RF BSPT THREADED FLANGE CS A105N

https://www.integraflow.co.uk/web/image/product.template/19564/image_1920?unique=c7c9b8b
(0 review)
Outside diameter (O): 209.5mm
Hub diameter at base (C): 28.4mm
Length through hub (X): 117.3mm
Pitch circle diameter (K): 168.1mm
Raised face diameter (Y): 42.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore diameter (Q): 92.2mm
Hub thickness (T): 31.7mm
Number of bolt holes: 8
Material: A105N
Rating: CL 300
Threaded: BSPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, BSPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

£ 75.00 75.0 GBP £ 75.00 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us



    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.
