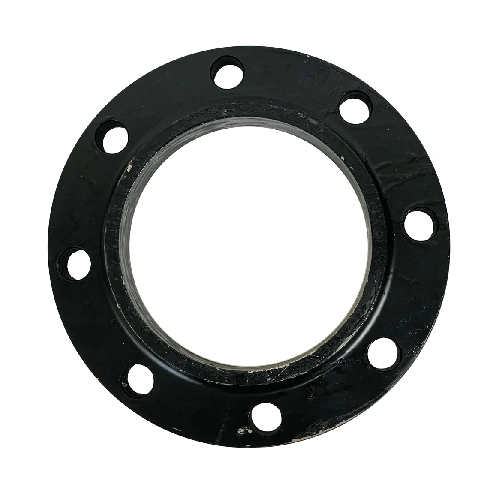

DN80 (3" NB) ASA600 RF BOSSED SLIP ON FLANGE CS A105N
Flange outside diameter: 209.5mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 45.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB
Internal Reference:
CS-NB-FLA-80-RF-SOB-ASA600-A105N
