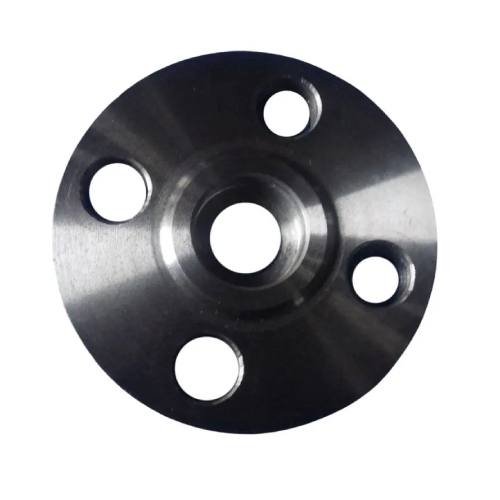

DN80 (3" NB) ASA150 RF SOCKET WELD FLANGE CS A105N
Outside diameter (O): 190.5mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 107.9mm
Pitch circle diameter (K): 152.4mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore length (B): 90.6mm
Bore diameter (D): 20.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced
Internal Reference:
CS-NB-FLA-80-RF-SW-150-A105N
