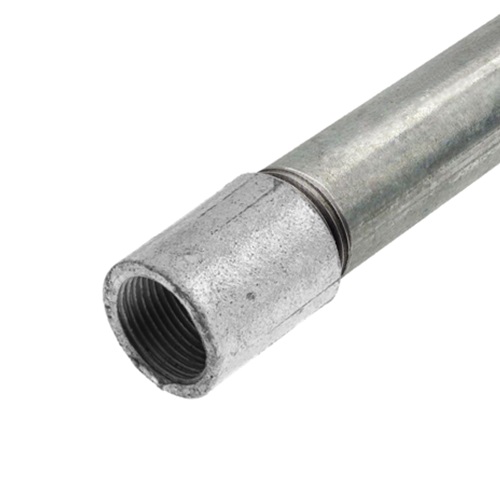

DN65 (2.1/2" NB) HEAVY WT EN10255 SCREWED & SOCKETED GALVANISED PIPE
Outside Diameter (OD): 76.2mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 7.93kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.
Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.
Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.
Internal Reference:
CS-PIP-65-HVY-GAL-SCR
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 2.1/2" |
| Outside Diameter (mm) | 76.20mm |
| Connection A | Threaded (BSP) |
| Connection B | Threaded (BSP) |
| Wall Thickness | 4.50mm |
| Material | Mild Steel |
| Product Type | Pipe |
| Construction | Welded |
| Product Category | Pipe |
| Finish | Galvanised |
