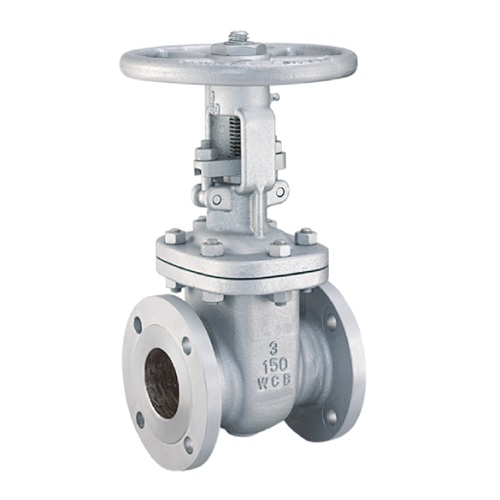

DN50 (2" NB) ASA150 FLANGED HW OP. WCB TRIM 8 GATE VALVE (178MM F2F) CARBON STEEL
Suits an outside diameter (OD) of: 60.3mm
Construction: Cast Steel
Body Material: Carbon Steel WCB
To suit flanges: Raised Face (RF) ASA150
Face to Face: 178mm
Operation: Handwheel Operated
Bore: Full Bore
Design Standard: API Trim No. 8 (API 600)
Bolted bonney, Outside Screw & Yoke (OS&Y)
Rising Stem
Max Pressure / Temperature:
38°C at 19.65 bar
200°C at 13.78 bar
Testing (API598)
Shell Test - Hydrostatic 3.1
Seat Test - Hydrostatic 2.2
Seat Test - Pneumatic (Air) 0.6
Internal Reference:
CS-VAL-GAT-FLA-A150-50-HW
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 2" |
| Product Category | Valve |
| Outside Diameter (mm) | 60.30mm |
| Material | Carbon Steel |
| Connection A | Flanged |
| Connection B | Flanged |
| Pressure Class | PN16 |
| Flange Standard | ANSI 150 |
| Construction | Cast |
| Finish | Self Colour |
| Product Type | Gate Valve |
