Product Information
%20ASA150%20WAFER%20DUO%20DISC%20CHECK%20VALVE%20SS%20316?unique=22ccc80)

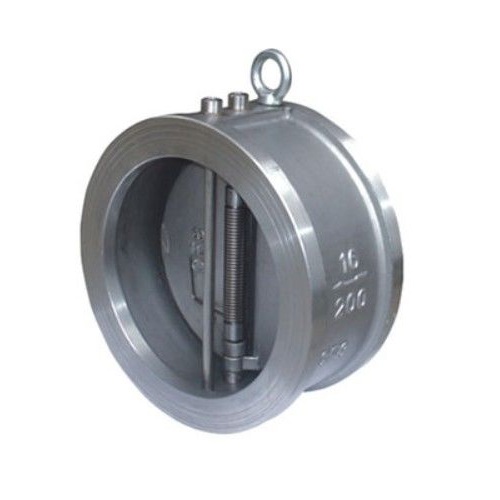

DN50 (2" NB) ASA150 WAFER DUO DISC CHECK VALVE SS 316
Suits an outside diameter (OD) of: 60.3mm
Construction: Spring Assisted Duo Disc Check Valve (NRV / Non-Return Valve)
Body Material: WCB Carbon Steel
Disc Material: Cast Stainless Steel to ASTM A351 Gr. CF8M
To suit flanges: ASA150
Face to Face (Thickness): 60mm
Operation: Automatic
Seat: Integral + AWS A5.9 ER316 Stainless Steel Overlay
Spring: Inconel 600
Max Pressure / Temperature:
38°C at 19.65 bar
200°C at 13.78 bar
Max working pressure: 19.65 bar
Internal Reference:
CS-VAL-NRV-WAF-P16-50-HW
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 2" |
| Product Category | Valve |
| Outside Diameter (mm) | 60.30mm |
| Material | Carbon Steel |
| Connection A | Flanged |
| Connection B | Flanged |
| Pressure Class | 150 psi |
| Flange Standard | ANSI 150 |
| Product Type | Check / Non- Return Valve (NRV) |
| Tags | |
|---|---|
| Tags | |
