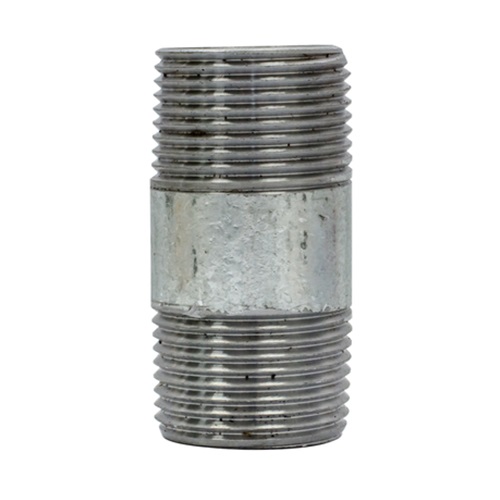

DN6 (1/8" NB) BSP GALVANISED HEAVY W/S BARREL NIPPLE (60mm LONG)
Threaded both sides: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Overall Length: 60mm
Material: Wrought Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.
Internal Reference:
HW-NB-BSP-BNI-6-60-GAL
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 1/8" |
| Outside Diameter (mm) | 10.29mm |
| Connection A | Threaded (BSP) |
| Connection B | Threaded (BSP) |
| Material | Mild Steel |
| Product Type | Barrel / Pipe Nipple |
| Pressure Class | 300 psi |
| Product Category | Fitting |
| Construction | Welded |
| Finish | Self Colour |
