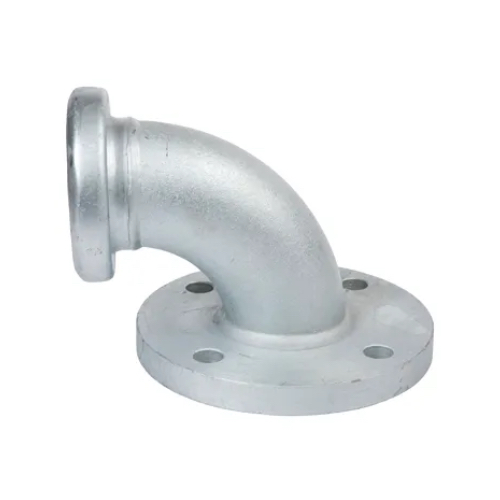

DN100 (4" NB) FEMALE ELBOW 90° X DN100 (4" NB) PN16 FLANGE GALV. LEVERLOCK (WITH O RING)
End 1: 4" Female Leverlock 90° Elbow / Bend to suit 4" Counterpart (Male) Leverlock
End 2: 4" NB PN16 Flanged to suit an outside diameter (OD) of: 114.3mm
Flanged End Specification:
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 180mm
Flange Diameter: 220mm
Flange Thickness: 20mm
Material: MS
Finish: Galvanised
Alternative terminology:
Male Flanged Bauer Coupling, Lever Lock Coupling, Tanker Coupling
Internal Reference:
LL-100-FEM-100-P16-90
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 4" |
| Outside Diameter (mm) | 114.3mm |
| Product Category | Fitting |
| Material | Mild Steel |
| Connection A | Flanged, Bauer Female |
| Connection B | Bauer Female, Flanged |
| Pressure Class | PN16 |
| Flange Standard | PN16 |
| Finish | Galvanised |
| Product Type | Bauer |
