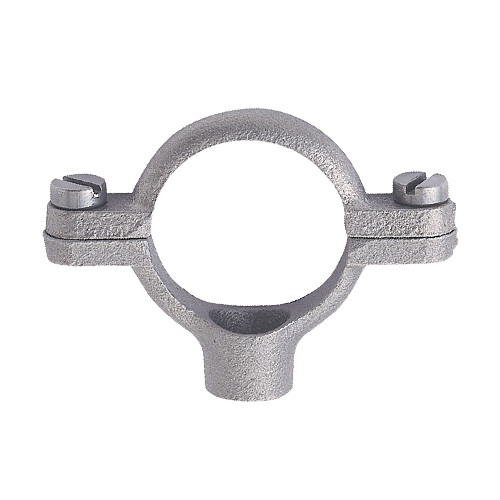

DN25 (1" NB) BSP GALVANISED MALLEABLE IRON 1/4" BSPP BOSSED MUNSEN PIPE RING
Suits pipe size: 1" NB x
Suits an outside diameter (OD) of: 33.4mm
Material: Malleable Iron
Finish: HOT DIP GALVANISED (HDG)
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Alternative terminology:
Malleable, Iron, Threaded, Screwed, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Fittings.
Internal Reference:
MI-NB-8B-RING-25-GAL
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 1" |
| Outside Diameter (mm) | 33.40mm |
| Product Category | Pipe Support |
| Connection A | M10 Boss |
| Connection B | Mechanical |
| Material | Malleable Iron |
| Product Type | Pipe Clip |
| Pressure Class | 150 psi |
| Finish | Galvanised |
| Construction | Cast |
| Tags | |
|---|---|
| Tags | |
