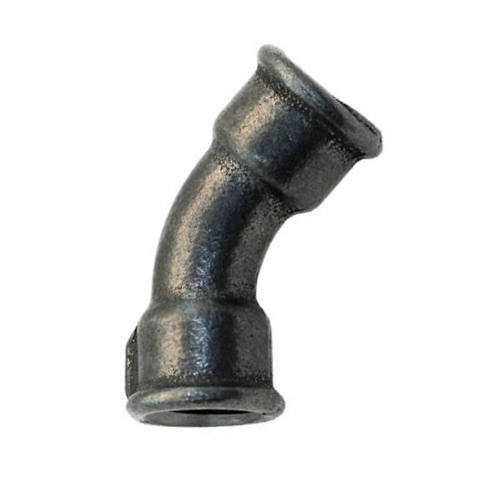

DN65 (2.1/2" NB) BSP BLACK MALLEABLE IRON FXF BEND 45°
Fittings
Technical Specification
Product Code
MI-NB-BSP-BEN-FF-45-65-BLK
Size (Inch)
2 1/2"
Outside Diameter (mm)
73.00mm
Weight
0.5 KG
Both sides threaded: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, 45°, Bend, Figure 41, Screwed, Fittings.
Internal Reference:
MI-NB-BSP-BEN-FF-45-65-BLK
Specifications
| Size (Inch) | 2 1/2" |
| Outside Diameter (mm) | 73.00mm |
