Product Information
%20BSP%20BLACK%20MALLEABLE%20IRON%20ROUND%20CAP%20END%20?unique=4e89d3d)

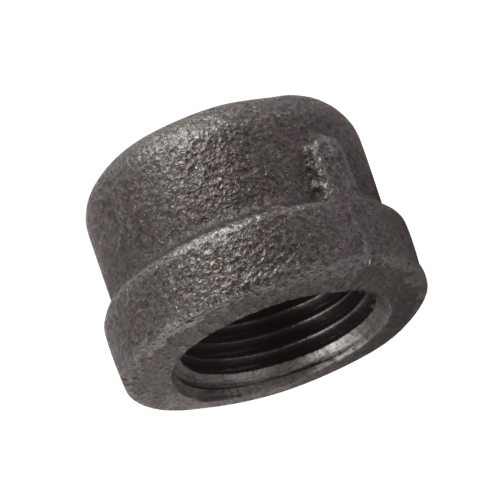

DN100 (4" NB) BSP BLACK MALLEABLE IRON ROUND CAP END
Threaded: 4" BSPP Female
Suits an outside diameter (OD) of: 114.3mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Alternative terminology:
Malleable, Iron, Threaded, Figure 185, Screwed, Fittings.
Internal Reference:
MI-NB-BSP-CAP-R-100-BLK
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 4" |
| Product Category | Fitting |
| Outside Diameter (mm) | 114.3mm |
| Material | Malleable Iron |
| Connection A | Threaded (BSP) |
| Connection B | Threaded (BSP) |
| Pressure Class | 150 psi |
| Construction | Cast |
| Finish | Self Colour |
| Product Type | Cap end |
| Tags | |
|---|---|
| Tags | |
