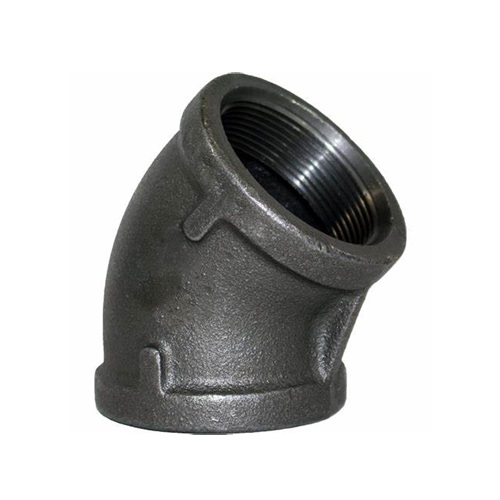

DN80 (3" NB) BSP BLACK MALLEABLE IRON FXF ELBOW 45°
Fittings
Technical Specification
Product Code
MI-NB-BSP-ELB-FF-45-80-BLK
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
1.84 KG
Both sides threaded: 3" BSPP Female x Female
Suits an outside diameter (OD) of: 88.9mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable 45°, 45 Degree, Malleable Iron, Threaded, Screwed, Figure 120, Fittings.
Internal Reference:
MI-NB-BSP-ELB-FF-45-80-BLK
Specifications
| Size (Inch) | 3" |
| Outside Diameter (mm) | 88.90mm |
