Product Information

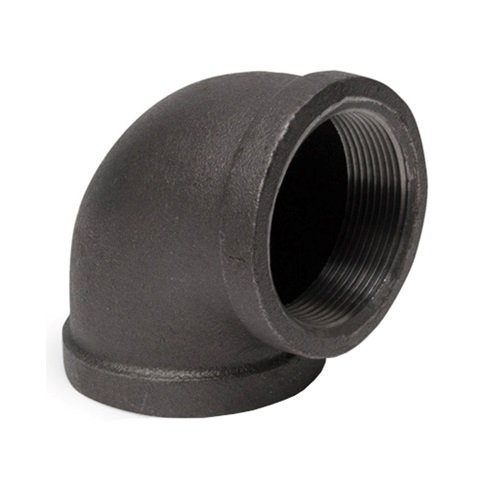

DN10 (3/8" NB) BSP BLACK MALLEABLE IRON FXF ELBOW 90°
Both sides threaded: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.15mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.
Internal Reference:
MI-NB-BSP-ELB-FF-90-10-BLK
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 3/8" |
| Product Category | Fitting |
| Outside Diameter (mm) | 17.15mm |
| Material | Malleable Iron |
| Connection A | Threaded (BSP) |
| Connection B | Threaded (BSP) |
| Pressure Class | 150 psi |
| Construction | Cast |
| Finish | Self Colour |
| Product Type | Elbow 90° |
| Tags | |
|---|---|
| Tags | |
