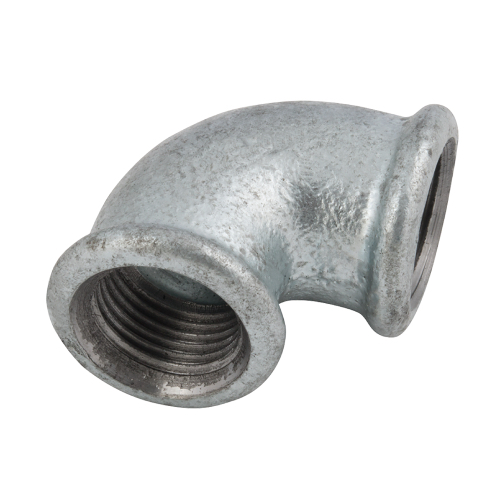

DN20 (3/4" NB) BSP GALVANISED MALLEABLE IRON FXF ELBOW 90°
Both sides threaded: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
Internal Reference:
MI-NB-BSP-ELB-FF-90-20-GAL
Specifications
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
