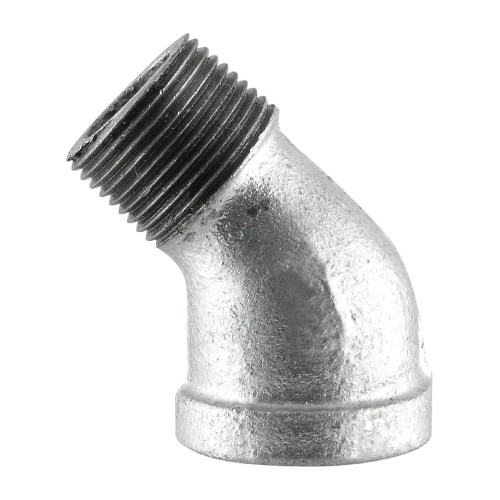

DN50 (2" NB) BSP GALVANISED MALLEABLE IRON MXF STREET ELBOW 45°
Technical Specification
Product Code
MI-NB-BSP-ELB-MF-45-50-GAL
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Both sides threaded: 2" BSPT Male x BSPP Female
Suits an outside diameter (OD) of: 60.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable 45°, 45 Degree, MxF, MF, Male x Female, Street, Malleable Iron, Threaded, Screwed, Figure 121, Fittings.
Internal Reference:
MI-NB-BSP-ELB-MF-45-50-GAL
Specifications
| Size (Inch) | 2" |
| Outside Diameter (mm) | 60.30mm |
