Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.77mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 1.29kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.77mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 1.29
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 1.62 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 1.62 kg
Construction: Seamless
Finish: Hot Dip Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm (Sch80)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 1.62kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm (Sch80)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 1.62kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Both sides: 1/2" Socket Weld
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Alternative terminology:
Forged, Stainless, Socket Weld, Coupling, Socket, Straight, Equal.

Both sides: 1/2" Socket Weld
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, Cap end, Blanking Cap, Termination Cap, Stop End.

Threaded: 1/2" NB Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: Socket Weld
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Suits an outside diameter (OD) of: 21.3mm
Body Material: Stainless Steel A182 F11, Bolted Bonnet, OS&Y
Connecton: Socket Weld (SW) Both Ends

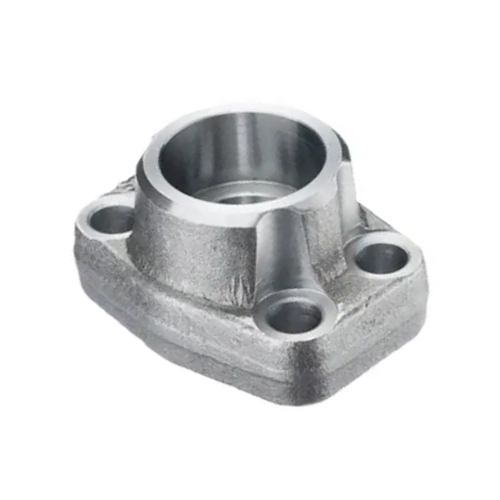

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel
Grade: 316
Standards: Hydraulic SAE Counter Flange 3000 Series

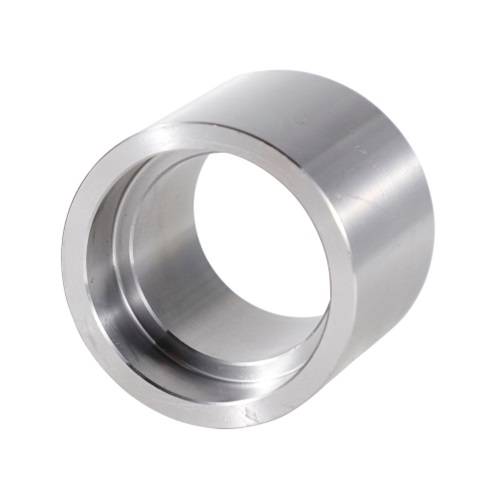

Side One: 1/2" Socket Weld
Side Two: 1/2" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, NPT, Adaptor, Coupling, Socket, Straight, Equal.

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 45°, 45 Deg, Weldable, Low Pressure, 150 psi

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 90°, 90 Deg, Weldable, Low Pressure, 150 psi

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel
Grade: 316

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316
Standards:
Nominal Bore, SW (Socket Weld), Weldable, Low Pressure, 150 psi

Alternative terminology:
SW Cap, Termination, Blanking Cap, Cap End

Connection: 1/2" SW
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Stainless Steel

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Stainless Steel

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Stainless Steel

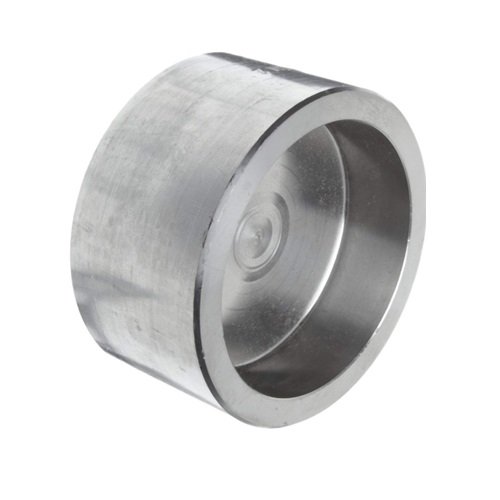

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Stainless Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blanking Cap End, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Suits an outside diameter (OD) of: 21.3mm
Material: MS Zinc Plated (BZP)
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Mild Steel (Galvanised))
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel 304 (A2)
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel 316 (A4)
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Thread: M6

Suits an outside diameter (OD) of: 21.3mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 21.3mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated

Thread: ½" BSPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Stainless Steel
