Thread: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

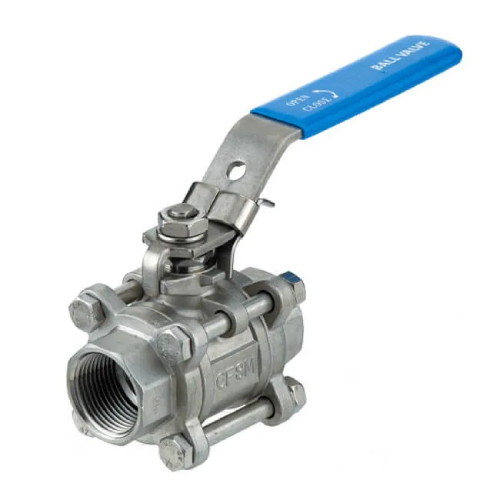

Threaded: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: NPT Female
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Thread: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Thread: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Carbon Steel

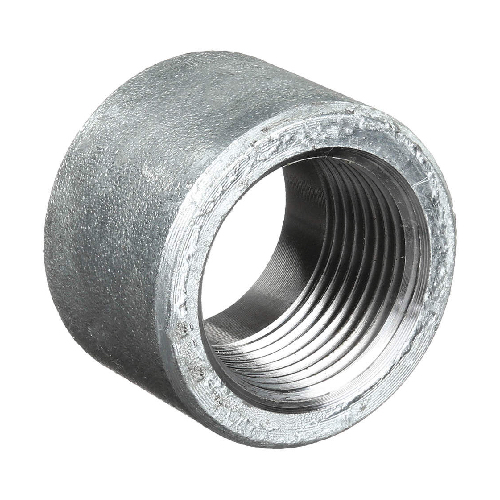

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Head Plug, Blanking, Termination, Carbon Steel

Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Hexagon Nipple, Carbon Steel

Thread: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Carbon Steel

Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 304
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Stainless Steel

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 304
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Stainless Steel

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 304
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Stainless Steel

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Thread: 3/4" NPT
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Carbon Steel

Flange outside diameter: 105mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Flange outside diameter: 105mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Flange outside diameter: 105mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Flange outside diameter: 105mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

3/4" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 120mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 100°C.

3/4" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16

Face to face: 120mm

Suitable for gas service.
EN331 approved design.

Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.

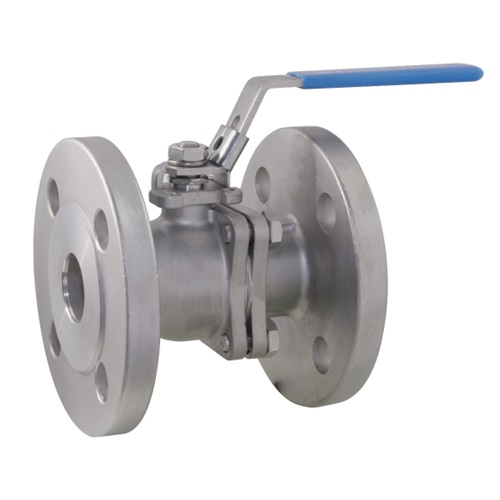

Flanged both ends: 3/4" PN16
Suits an outside diameter (OD) of: 26.9mm
PCD: 75mm Ø (PN10, PN16, PN40)
Face to face: 120mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Flat Face (RF): 52mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Raised Face (RF): 52mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Raised Face (RF): 52mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Flange outside diameter: 90mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Flange outside diameter: 90mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Flange outside diameter: 90mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Flange outside diameter: 90mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 52mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 52mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 52mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

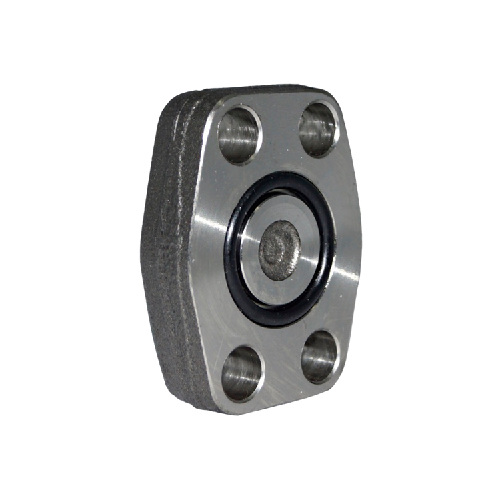

Suits an outside diameter (OD) of: 26.9mm
Material: Stainless Steel
Grade: 316
Standards: Hydraulic SAE Blind Flange 6000 Series
O-Ring: Included

Suits an outside diameter (OD) of: 26.9mm
Material: CS
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off 15.7mm Ø
PCD: 69.8mm
Flange Diameter: 98.5mm
Flange Thickness: 12.7mm
Certification Available: 3.1 Material Certification
Origin: European (EU)

Alternative terminology:
Raised Face, Socket Weld SW, Weld on, Mild Steel, Carbon Steel

Suits an outside diameter (OD) of: 26.9mm
Material: CS
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 16 off 15.7mm Ø
PCD: 69.8mm
Flange Diameter: 98.5mm
Flange Thickness: 12.7mm
Certification Available: 3.1 Material Certification
Origin: European (EU)

Alternative terminology:
Raised Face, Weld Neck, Weld on, Mild Steel, Carbon Steel
