Socket Weld: 3/4" NB
Suits an outside diameter (OD) of: 26.9mm
Sits on an 60.3mm diameter for welding
Material: Carbon Steel
Grade: A105 N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)

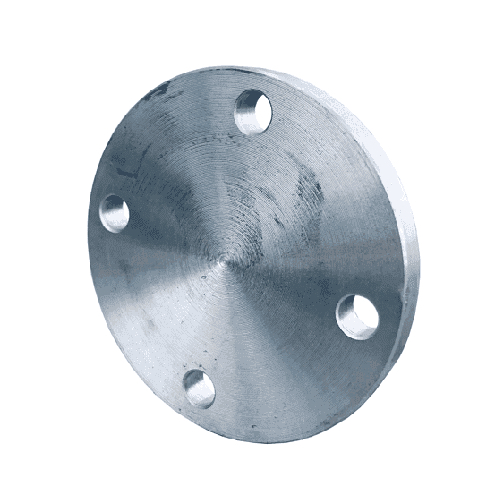

Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

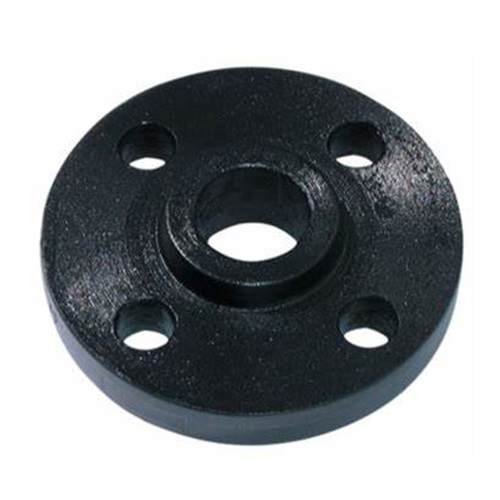

Flange outside diameter: 105mm (D)
Flange inside diameter: 27.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 75mm (K)
Hub height: 26mm (H1)
Neck diameter: 45mm (N2)
Raised Face Diameter: 58mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

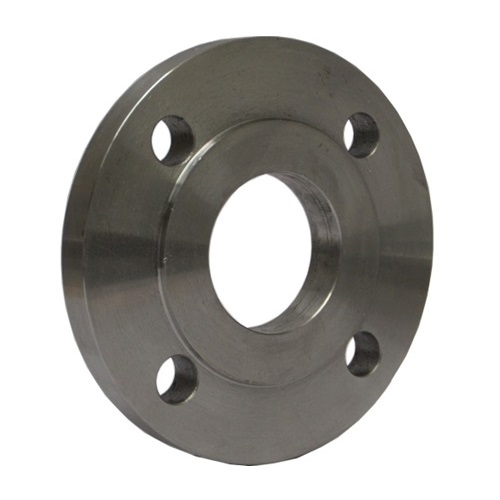

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

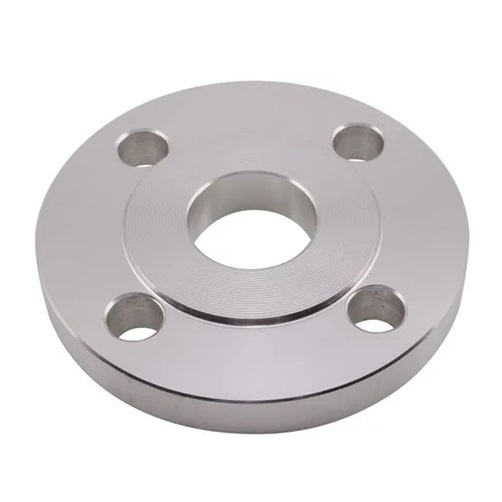

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 90mm (D)
Flange inside diameter: 27.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 65mm (K)
Hub height: 24mm (H1)
Neck diameter: 40mm (N2)
Raised Face Diameter: 50mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Side 1 threaded: 3/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

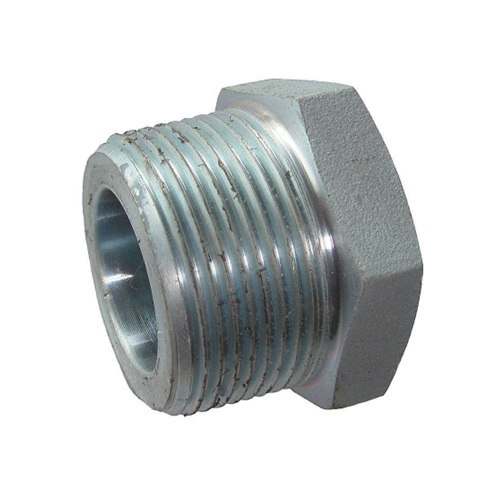

Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Side 1 threaded: 3/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 26.9mm

Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 3/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 26.9mm

Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 26.9mm

Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.

Thread Side 1: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Thread Side 2: 1/4" NPT Female
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Reducing Bush, MXF, Hex Bush, Carbon Steel

Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/4" NPT Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Run threads: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Run threads: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Side 1 Thread: 3/4" NPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Side 2 Thread: 3/8" NPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Stainless Steel, Stainless Steel, Threaded, Screwed, Fittings.

Side 1 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Side 2 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Stainless Steel, Stainless Steel, Threaded, Screwed, Fittings.

Side One Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 3/8" BSPT Male
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" BSP Female
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 3/8" BSP Female
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316

Side 1 Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Side 2 Thread: 3/8" BSPT Male x Male
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 3/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 17.15mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Run threads: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Branch Thread: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.15mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed
