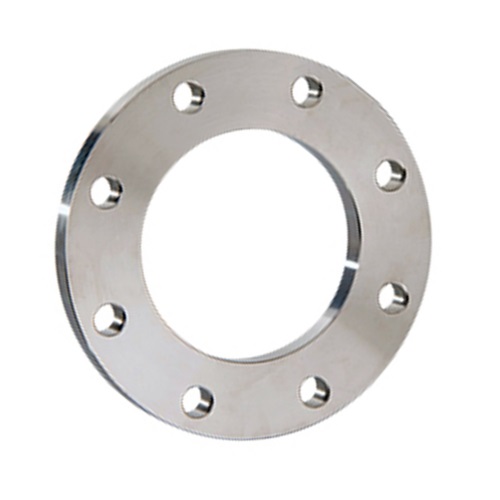

2.50" (DN65 - 8 HOLE) PN16 (BORED 70MM ID) TABLE E THICK FF SLIP ON FLANGE SS 304

2.50" (DN65 - 8 HOLE) PN16 (BORED 70MM ID) TABLE E THICK FF SLIP ON FLANGE SS 304

Fittings Flanges Hygeinic
Technical Specification
Product Code
SS-HYG-FLA-FF-SO-P16-65-70-E-304-8H
Size (Inch)
2 1/2"
Outside Diameter (mm)
69.00mm
Weight
1.3 KG
https://www.integraflow.co.uk/web/image/product.template/6123/image_1920?unique=4047227
(0 review)

£ 44.82 44.82 GBP £ 44.82 Tax Excluded

Contact us for pricing

(£ 44.82 / each)
Product details
Weight 1.30 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Fittings Flanges Hygeinic

Suits an outside diameter (OD) of: 69mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 10.32mm
Inside diameter to suit 69mm OD Hygienic / Dairy Tube

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
FF, SO, Flat Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.
