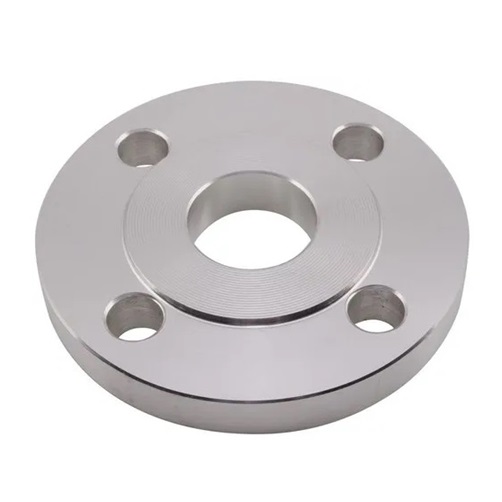

2.50" (DN65 - 4 HOLE) PN16 (BORED 63.5mm / 2.50" OD) RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 63.5mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Inside diameter to suit 2.1/2" OD Hygienic / Dairy Tube
Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
Alternative terminology:
RF, SO, Raised Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Full Thick Plate Flange. OD Flange.
Internal Reference:
SS-HYG-FLA-RF-SO-P16-65-63.5-FUL-316-4H
Specifications
| Connection A | Flanged, Weld On |
| Connection B | Flanged, Weld On |
| Pipework Standard | Hygienic |
| Size (Inch) | 2.1/2" |
| Product Category | Flange |
| Outside Diameter (mm) | 63.50mm |
| Material | Stainless Steel 316 |
| Pressure Class | PN16 |
| Flange Standard | PN16 |
| Product Type | Slip on Flange |
