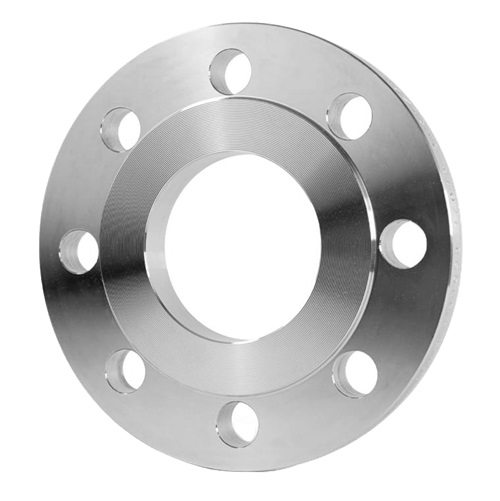

4.00" (DN100) PN25/40 (BORED 101.6mm / 4.00" OD) RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 101.6mm
Material: Stainless
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 162mm
Flange Diameter: 235mm
Flange Thickness: 26mm (PN25/40)
Inside diameter to suit 4" OD Hygienic / Dairy Tube
Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
Alternative terminology:
RF, SO, Raised Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Full Thick Plate Flange. OD Flange.
Internal Reference:
SS-HYG-FLA-RF-SO-P25/40-100-101.6-FUL-316
Specifications
| Connection A | Flanged, Weld On |
| Connection B | Flanged, Weld On |
| Pipework Standard | Hygienic |
| Size (Inch) | 4" |
| Product Category | Flange |
| Outside Diameter (mm) | 101.6mm |
| Material | Stainless Steel 316 |
| Pressure Class | PN25, PN40 |
| Flange Standard | PN40 |
| Product Type | Slip on Flange |
