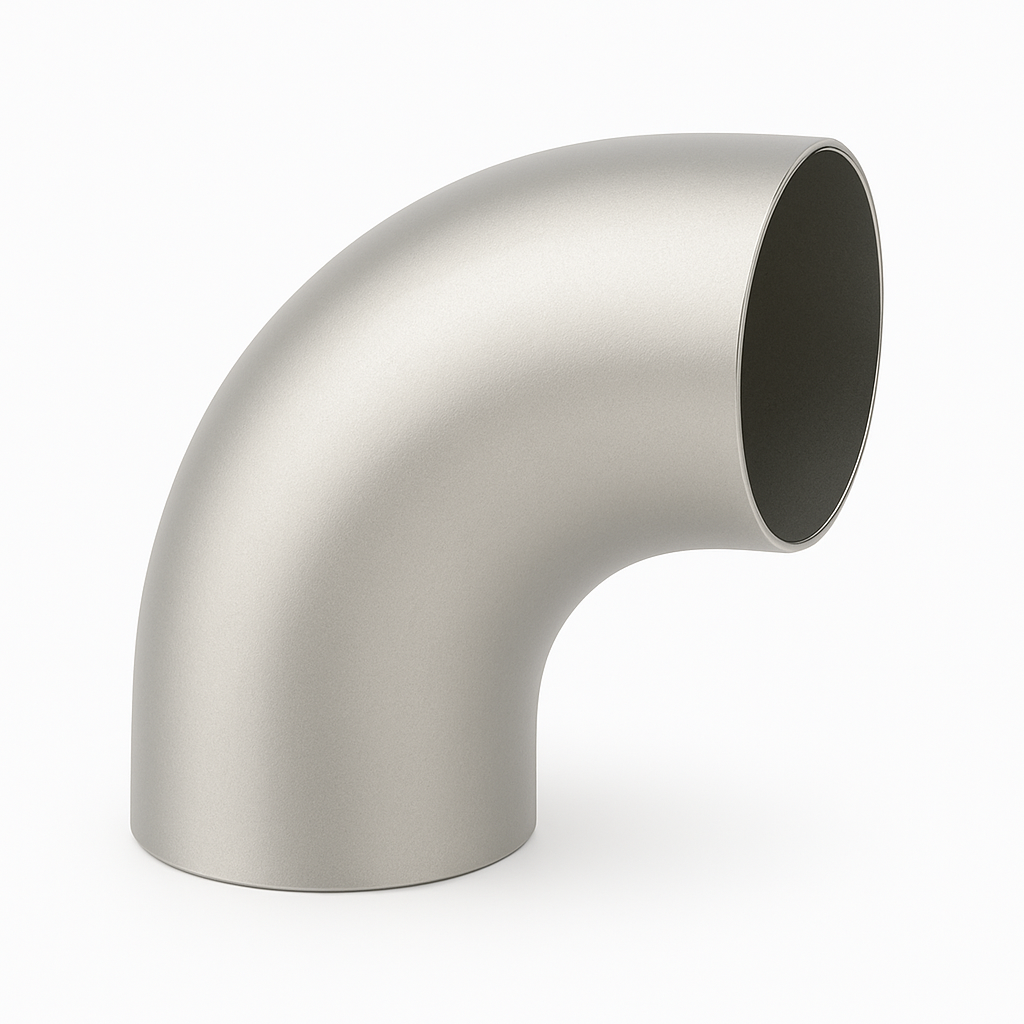

168.3mm OD ISO BEND 90° (R=1.5D) 2mm THK SS 304/L

168.3mm OD ISO BEND 90° (R=1.5D) 2mm THK SS 304/L

Fittings
Technical Specification
Product Code
SS-ISO-BEN-90-1.5D-168.3X2.0-304
Outside Diameter (mm)
168.30mm
Weight
3.0 KG
https://www.integraflow.co.uk/web/image/product.template/22222/image_1920?unique=4047227
(0 review)

£ 78.15 78.15 GBP £ 78.15 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 3.00 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Fittings
Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 304/L
Standards: EN 10253-4
Radius: 1.5D (1XD)
Angle: 90 Degree
Construction: Welded
Finish: Mill Finish (Non polished finish)

Applications:
Hygienic, Dairy and Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical and Pharmaceutical, Hospitals.


Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-ISO-BEN-90-1.5D-168.3X2.0-304

Specifications

Outside Diameter (mm) 168.30mm
