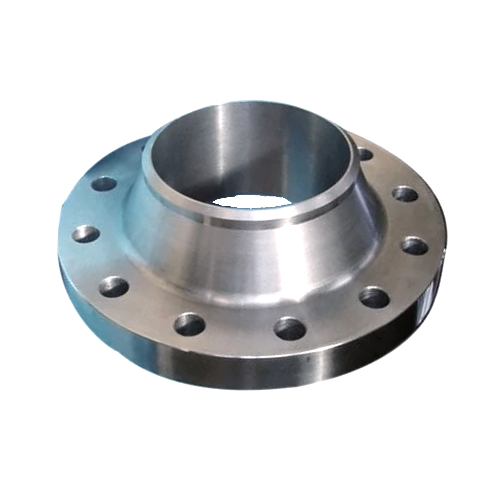

DN200 (8" NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 316.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg
Internal Reference:
SS-NB-FLA-200-RF-WN-S80-300-316
Specifications
| Size (Inch) | 8" |
| Outside Diameter (mm) | 219.10mm |
