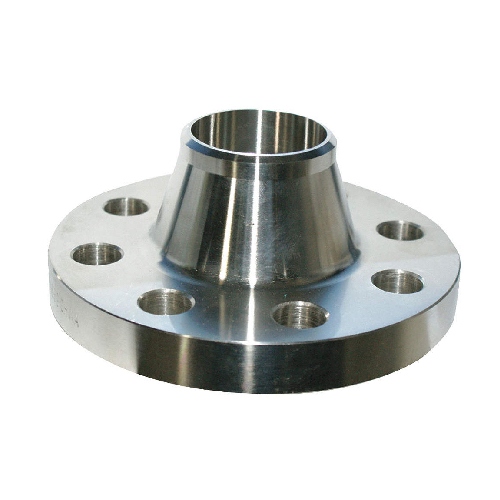

DN200 (8" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF
Internal Reference:
SS-NB-FLA-200-RF-WN-S80-A150-304
Specifications
| Size (Inch) | 8" |
| Outside Diameter (mm) | 219.10mm |
