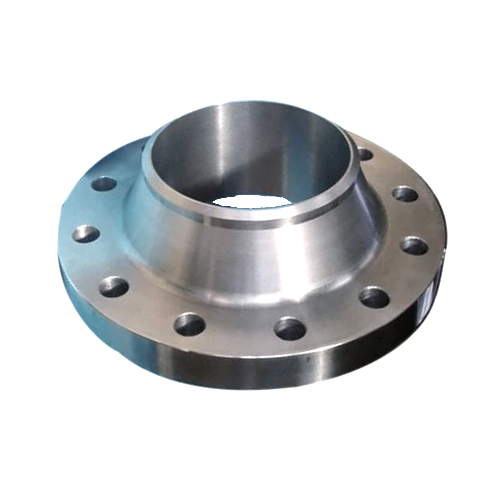

DN250 (10" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Hub length (X): 304 Stainless Steel.8mm
Neck height (A): 273.0mm
Pitch circle diameter (K): 361.9mm
Hub base diameter (Y): 101.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF
Internal Reference:
SS-NB-FLA-250-RF-WN-S40-A150-304
