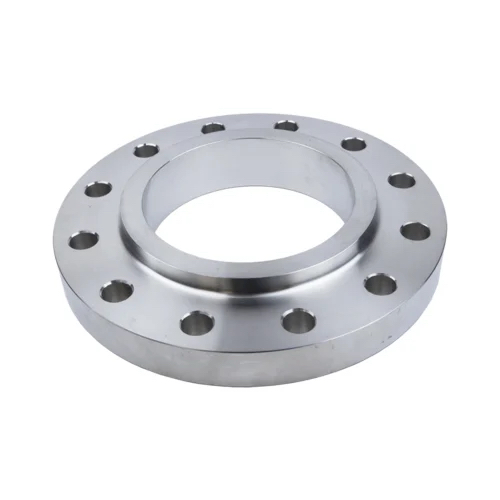

DN300 (12" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304

DN300 (12" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-300-RF-SOB-ASA600-304
Size (Inch)
12"
Outside Diameter (mm)
323.90mm
Weight
86.0 KG
https://www.integraflow.co.uk/web/image/product.template/18103/image_1920?unique=92bc388
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 86.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 558.8mm (O)
Flange thickness: 66.5mm (C)
Flange hub height: 91.9mm (Y)
Pitch Circle Diameter (PCD): 488.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 327.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-300-RF-SOB-ASA600-304

Specifications

Size (Inch) 12"
Outside Diameter (mm) 323.90mm
