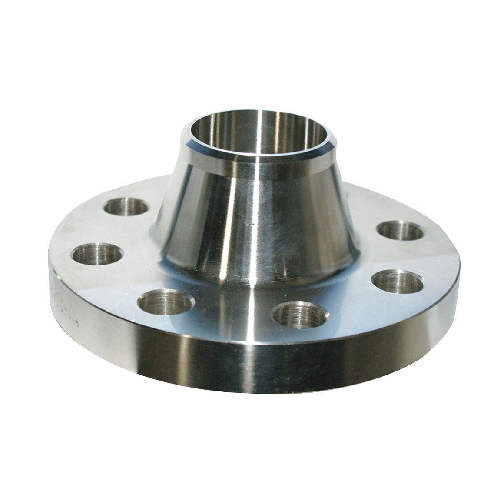

DN65 (2"1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
Internal Reference:
SS-NB-FLA-65-RF-WN-S80-300-316
Specifications
| Size (Inch) | 2" |
| Outside Diameter (mm) | 73.00mm |
