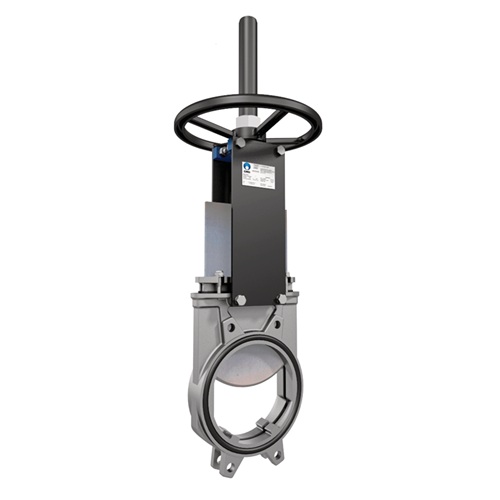

DN150 (6" NB) PN16 C/I BI-DIRECTIONAL KNIFE EDGE GATE VALVE
Suits an outside diameter (OD) of: 168.3mm
Body Material: Cast Iron GJL-250
Gate Material: AISI SS 304
Seat: EPDM
Packing: SYNT + PTFE
O-Ring Seal: EPDM
Support Plates: S275JR
O-Ring: Nitrile
Stem: AISI SS 303
Yoke: Steel
Stem Nut: Bronze
Check Nut: ST44.2 + Zinc
To suit flanges: PN16
Pressure Class: 10 Bar
Face to Face: 50mm
Operation: Handwheel Operated
Design Standard: DIN PN10
DIRECTIVES
Pressure Equipment Directive:
(PED) ART 4.3 /CAT.1.
Potential Explosive Atmospheres Directive:
(ATEX) CAT.3 ZONA 2 y 22 GD.
Internal Reference:
VAL-KEG-150-P16-HW-BI
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 6" |
| Product Category | Valve |
| Outside Diameter (mm) | 168.3mm |
| Material | Cast Iron |
| Connection A | Flanged |
| Connection B | Flanged |
| Pressure Class | PN10 |
| Product Type | Knife Edge Gate Valve |
