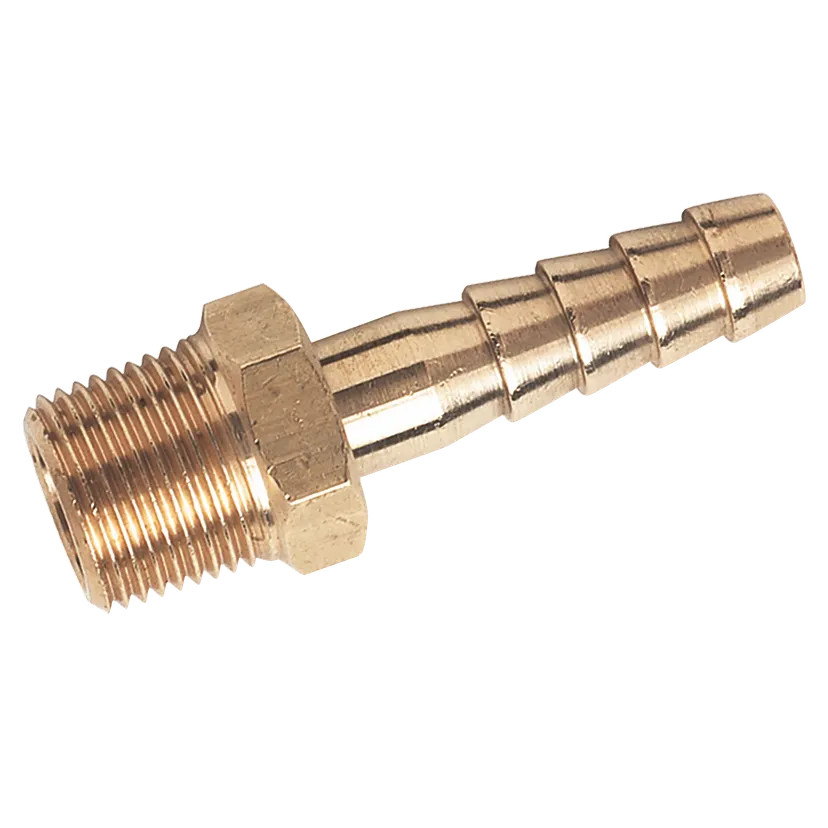

DN80 (3" NB) BSPT MALE X 3" OD HOSE TAIL BRASS
Technical Specification
Product Code
BRS-MHT-BSPT-80-76
Size (Inch)
3"
Outside Diameter (mm)
76.10mm
Weight
0.2 KG
Thread Side: 3" BSPT Male
Suits an outside diameter (OD) of: 88.9mm
Hose Side: 76.1mm OD Tail
Suits an inside diameter (OD) of: 76.1mm
Material: Brass
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi
Alternative terminology:
Male Hose Tail, Hose Adaptor, Hose Connector, Barb, Hose Push in Fitting
Internal Reference:
BRS-MHT-BSPT-80-76
Specifications
| Size (Inch) | 3" |
| Outside Diameter (mm) | 76.10mm |
