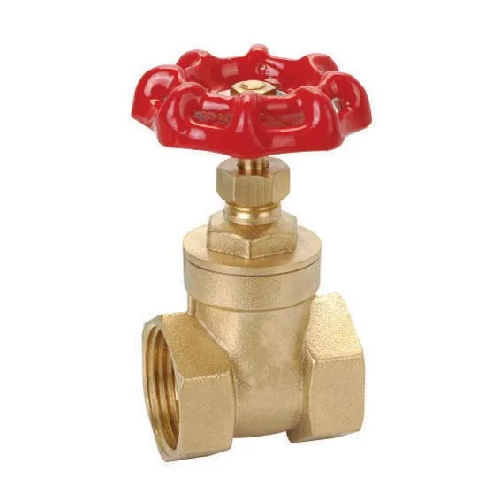

DN20 (3/4" NB) BSPT (FXF) HANDWHEEL OP. GATE VALVE BRASS
Technical Specification
Product Code
BRS-VAL-GAT-BSP-20-HW
Size (Inch)
3/4"
Outside Diameter (mm)
26.70mm
Weight
0.33 KG
Suits an outside diameter (OD) of: 26.9mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20
Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve
Internal Reference:
BRS-VAL-GAT-BSP-20-HW
Specifications
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
